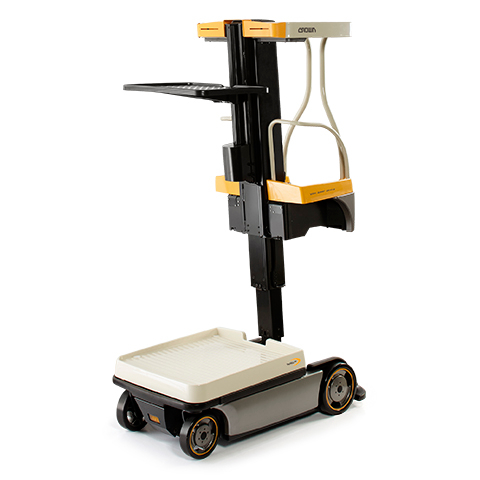

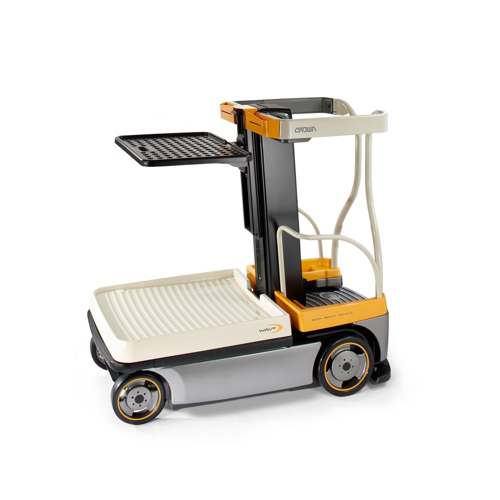

Work Assist Vehicle Man Up Order Picker
Option
Qty
Item(s) Added to Cart
- WAV Series
- Operator Compartment Capacity: 300lbs

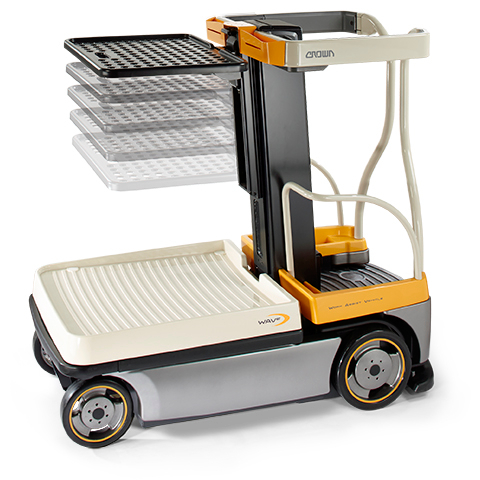

- Load Tray Capacity: 200lbs
- Load Deck Capacity: 250lbs
- 118” Lift Height
- 195” Working Height
- 54.5” Collapsed Height
- Interlocking Gates
- Dual Foot Pedals
- Platform Sensors
- Hand Sensors
Work Assist Vehicle Man Up Order Picker
Back to TopSpecifications
| Maximum Lift Height | Up to 118 in |
| Maximum Load Capacity | Up to 200 lb |
| Application | High-Level Order Picking, Low / Mid-Level Order Picking |
| Truck Type | Man Up Order Pickers |
| Environment | Indoor |
| Power Type | Electric |
| Max Load Capacity (lb) | 200 |
| Lift Height Numeric | 118 |
| Series | WAV 60 |
| Platform Height | 118 in |
| Operating Position | Rider Stand-up |
| Fork Lengths | N/A |
| Empty Travel Speed | 5.0 mph |
| Mast Type | N/A |
| Empty Lift Lower Speed | 60 fpm / 45 fpm |
| Overall Width | Standard: 29.5 in / with rail guide rollers: 35 in |
Product Description

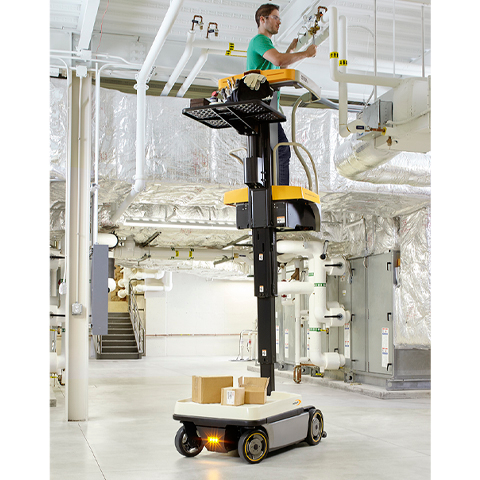

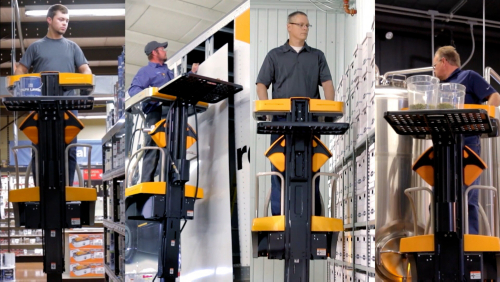

Back to TopDesigned to elevate an operator to a platform height of 9.8 feet, navigate tight aisles and doorways, and work more safely and faster. With a reach working height of up to 17 feet, the WAV series has proven success in numerous industries, including wholesale distribution, retail stores, and hospitality applications.
- WAV Series
- Operator Compartment Capacity: 300lbs
- Load Tray Capacity: 200lbs
- Load Deck Capacity: 250lbs
- 118” Lift Height
- 195” Working Height
- 54.5” Collapsed Height
- Interlocking Gates
- Dual Foot Pedals
- Platform Sensors
- Hand Sensors
