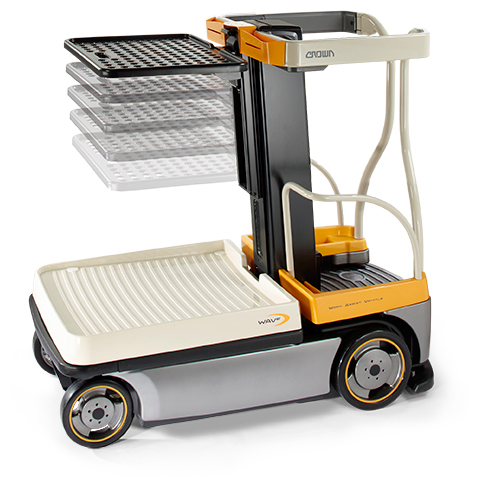

WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray

Part Number - WAV60-118D3111N111---1-
WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray
Option

Price:  $21,859.00

Qty
Free 10-14 Day Shipping
  • Manually Lift and Lower the Load Tray as Needed
  • Operator Compartment Capacity: 300 lbs
  • Load Tray Capacity: 200 lbs
  • Load Deck Capacity: 250 lbs
  • 118” Lift Height
  • 195” Working Height
  • 54.5” Collapsed Height
  • 4 x 6V, 190AH Maintenance-Free Batteries

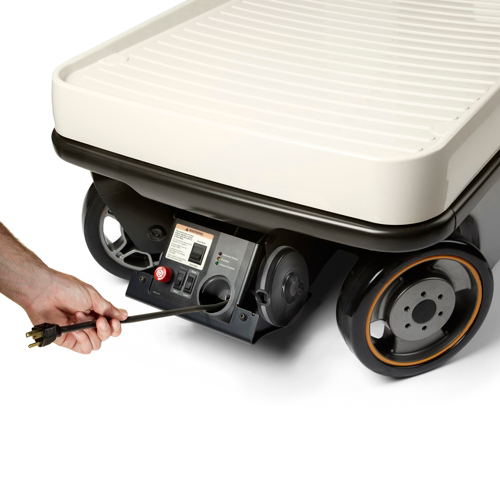

  • 120V, 30 Amp Onboard Charger
  • Retractable Charging Cord
  • Strobe Light & Travel/Mast Alarms Installed
  • Interlocking Gates, Dual Foot Pedals, Operator Platform & Hand Sensors
  • Work Assist Options Available (Visit Forklift Parts and Accessories)
Lift Truck Power Switch Key, Molded, Series: Walkies, Pallets, Tuggers, PR, Wave
Lift Truck Power Switch Key, Molded, Series: Walkies, Pallets, Tuggers, PR, Wave
$11.82
Key Switch Assembly, Keys/2
Key Switch Assembly, Keys/2
$47.41
V-Force® Deep Cycle Battery, Flooded, 6 V, 245 Ah, Terminal Style Type S, RC Min 145 @ 75 A
V-Force® Deep Cycle Battery, Flooded, 6 V, 245 Ah, Terminal Style Type S, RC Min 145 @ 75 A
Polyurethane Tire, 12x2.5x1.5, Smooth, Compound: 241
Polyurethane Tire, 12x2.5x1.5, Smooth, Compound: 241
$216.23
Polyurethane Tire, 10x2.5x2, Smooth, Compound: 241
Polyurethane Tire, 10x2.5x2, Smooth, Compound: 241
$140.62

WAV60-118 Work Assist Vehicle, Man Up Order Picker With Manual Load Tray

Back to Top

Specifications

Option Manual Load Tray
Maximum Lift Height Up to 118 in
Maximum Load Capacity Up to 200 lb
Application High-Level Order Picking, Low / Mid-Level Order Picking
Truck Type Man Up Order Pickers
Environment Indoor
Power Type Electric
Max Load Capacity (lb) 200
Lift Height Numeric 118
Series WAV 60
Platform Height 118 in
Operating Position Rider Stand-up
Fork Lengths N/A
Empty Travel Speed 5.0 mph
Mast Type N/A
Empty Lift Lower Speed 60 fpm / 45 fpm
Overall Width Standard: 29.5 in / with rail guide rollers: 35 in

Product Description

Back to Top

Designed to elevate an operator to a platform height of 9.8 feet, navigate tight aisles and doorways, and work more safely and faster. With a reach working height of up to 17 feet, the WAV series has proven success in numerous industries, including wholesale distribution, retail stores, and hospitality applications.

  • Manually Lift and Lower the Load Tray as Needed
  • Operator Compartment Capacity: 300 lbs
  • Load Tray Capacity: 200 lbs
  • Load Deck Capacity: 250 lbs
  • 118” Lift Height
  • 195” Working Height
  • 54.5” Collapsed Height
  • 4 x 6V, 190AH Maintenance-Free Batteries
  • 120V, 30 Amp Onboard Charger
  • Retractable Charging Cord
  • Strobe Light & Travel/Mast Alarms Installed
  • Interlocking Gates, Dual Foot Pedals, Operator Platform & Hand Sensors
  • Work Assist Options Available (Visit Forklift Parts and Accessories)
