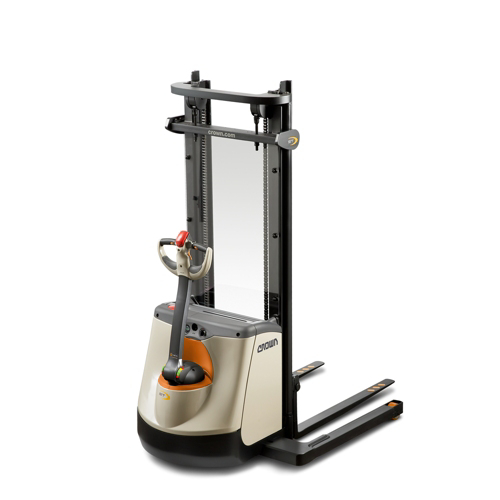

ST 3200 Walkie Straddle Stacker
Part Number - ST-3200
Price:
Qty
Item(s) Added to Cart
- ST Series
- Lift Capacity: 2500lbs
- Lift Height: 128” – 168”
- Collapsed Height: 73” – 83”
- 38-50” Inside Outrigger Straddle Width
- 30 Amp Onboard Charger (Extension Cord Included)
- Plexiglass Mast Guard
- Horn & Key Switch
- Maintenance-Free, Semi-Industrial, and Starter Battery Options
- Optional 36” Load Backrest
- Fork Length: 36”, 42”, & 48” Options
ST 3200 Walkie Straddle Stacker
Back to TopSpecifications
| Maximum Lift Height | Up to 168 in |
| Maximum Load Capacity | Up to 2500 lb |
| Application | Loading / Unloading, Manufacturing / Assembly (Just-in-Time), Putaway / Retrieval / Takedown |
| Truck Type | Stackers |
| Environment | Indoor, Outdoor-Improved Surface |
| Power Type | Electric |
| Max Load Capacity (lb) | 2500 |
| Lift Height Numeric | 168 |
| Series | ST 3200 |
| Platform Height | N/A |
| Operating Position | Walk-behind |
| Fork Lengths | 36 - 48 in |
| Empty Travel Speed | 3.42 mph |
| Mast Type | Two Stage / Three Stage |
| Empty Lift Lower Speed | 35.43 fpm / 49.21 fpm |
| Overall Width | 44.4 - 56.4 in |
