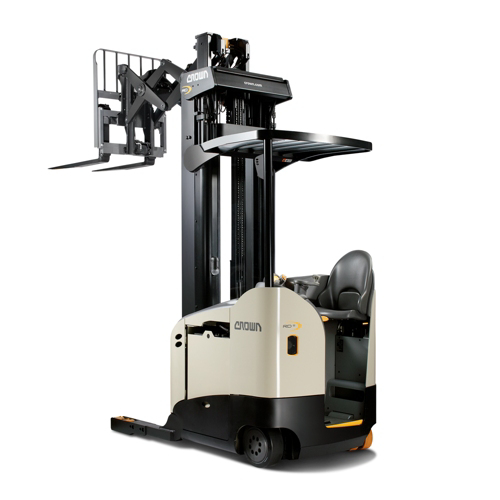

RD 5700S Sit-Down Double Reach Truck
Part Number - RD-5700-S
Price:
Qty
Item(s) Added to Cart
- RD Series
- Lift Capacity: 3,20 0lbs
- Lift Height: 198” – 442”
- Collapsed Height: 89” – 190”
- 36-Volt System
- OnTrac® Anti-Slip Traction Control
- Adjustable Suspended Seat, Perch, Backrest, and Multi-Task Control Armrest
- Lift Slowdown 12” from Maximum Lift Height
- Entry Bar™ Safety Switch
- 2” Integrated Sideshift
- Tilting Fork Carriage
- 36” Load Backrest
- Overhead Guard
RD 5700S Sit-Down Double Reach Truck
Back to TopSpecifications
| Maximum Lift Height | Up to 442 in |
| Maximum Load Capacity | Up to 3200 lb |
| Application | Manufacturing / Assembly (Just-in-Time), Putaway / Retrieval / Takedown |
| Truck Type | Reach |
| Environment | Indoor |
| Power Type | Electric |
| Max Load Capacity (lb) | 3200 |
| Lift Height Numeric | 442 |
| Series | RD 5700 S |
| Platform Height | N/A |
| Operating Position | Rider Sit-Down Stand-up, Sit/Stand/Lean |
| Fork Lengths | 30 - 48 in |
| Empty Travel Speed | 8.3 mph |
| Mast Type | Three Stage |
| Empty Lift Lower Speed | 152 fpm / 110 fpm |
| Overall Width | 48 in |
