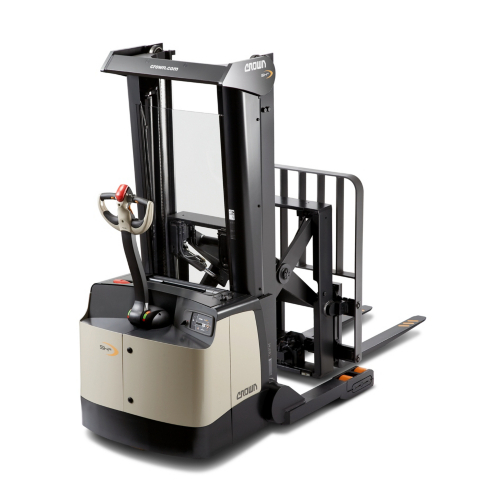

SHR 5500 Heavy-Duty Walkie Reach Stacker
Part Number - SHR-5500
Price:
Qty
Item(s) Added to Cart
- SHR Series
- Lift Capacity: 2,500 lb, 3,000 lb, & 3,500 lb Models
- Lift Height: 127.5” – 192”
- Collapsed Height: 75” – 95.5”
- 23.2” Extension Pantograph Reach Mechanism
- 34” – 50” Inside Outrigger Straddle Width
- 24-Volt Electrical System
- Wire Mesh Mast Guard
- Horn & Key Switch
- Fork Length: 30”, 36”, 39”, 42”, 45”, 48”, 54”, & 60” Forks Available
- 300AH Industrial Battery or 660AH Industrial Battery Options
- Optional 30Amp Onboard Charger (300AH Industrial Battery Only)
- Optional Side-Shift, Tilt, & Load Backrest
SHR 5500 Heavy-Duty Walkie Reach Stacker
Back to TopSpecifications
| Maximum Lift Height | Up to 192 in |
| Maximum Load Capacity | Up to 3500 lb |
| Application | Loading / Unloading, Putaway / Retrieval / Takedown, Restocking (Retail) |
| Truck Type | Stackers |
| Environment | Indoor, Outdoor-Improved Surface |
| Power Type | Electric |
| Max Load Capacity (lb) | 3500 |
| Lift Height Numeric | 192 |
| Series | SHR 5500 |
| Platform Height | N/A |
| Operating Position | Walk-behind |
| Fork Lengths | 30 - 60 in |
| Empty Travel Speed | 3.7 mph |
| Mast Type | Two Stage / Three Stage |
| Empty Lift Lower Speed | 48.4 fpm / 50 fpm |
| Overall Width | Wheelbase: 52.7 or 59.2 in |
