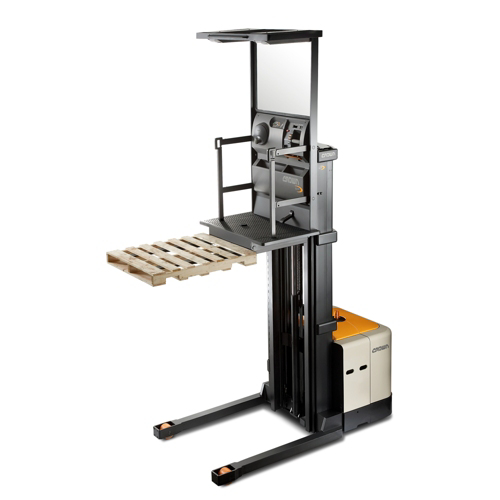

SP 3570F, 4-Wheel Straddle - Order Picker
Part Number - SP-3570F
Price:
Qty
Item(s) Added to Cart
- SP Series
- Lift Capacity: 3,000 lbs
- Lift Height: 210” – 294”
- Collapsed Height: 95” – 125”
- 24-Volt Electrical System
- Two-Speed Raise/Lower with Soft Start & Stop
- Intelligent Braking with Low-Profile Brake Pedal
- Hinged Side Gates with Power Disconnect
- Retractable Tether & Body Harness
- Horn & LED Flashing Light
- Corrosion Conditioning
- Storage Compartment
SP 3570F, 4-Wheel Straddle - Order Picker
Back to TopSpecifications
| Maximum Lift Height | Up to 366 in |
| Maximum Load Capacity | Up to 3000 lb |
| Application | High-Level Order Picking, Low / Mid-Level Order Picking, Putaway / Retrieval / Takedown, Restocking (Retail) |
| Truck Type | Man Up Order Pickers |
| Environment | Indoor |
| Power Type | Electric |
| Max Load Capacity (lb) | 3000 |
| Lift Height Numeric | 366 |
| Series | SP 3570 F |
| Platform Height | 371 in |
| Operating Position | Rider Stand-up |
| Fork Lengths | 30 - 84 in |
| Empty Travel Speed | 7 mph |
| Mast Type | Three Stage |
| Empty Lift Lower Speed | 71 fpm / 80 fpm |
| Overall Width | 48.5 in |
