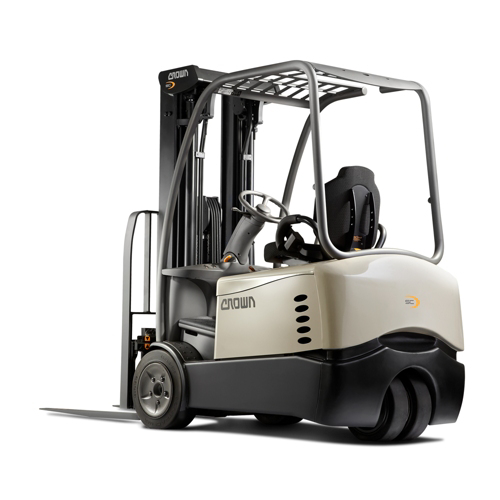

SC 5700, 3-Wheel Sit-Down Counterbalance Forklift

Part Number - SC-5700
SC 5700, 3-Wheel Sit-Down Counterbalance Forklift

Price:  Request Quote for Price

Qty
Ships in 3-5 Business Days
  • SC Series
  • Lift Capacity: 3000lb, 3500lb, & 4000lb Models
  • Lift Height: 114” - 276”
  • Collapsed Height: 54” – 100”
  • Lead-Acid or Lithium-Ion 36v System Options
  • 5° Forward Tilt
  • 48” Load Backrest
  • eGen Braking
  • Extended Steering Column with Infinite Adjustment
  • Lift Out or Side Battery Removal Access
  • EE Rating, Corrosion, and Freezer Packages Available
Connector Housing, 350 SB, Gray
Connector Housing, 350 SB, Gray
$12.23
Seat Belt, 51 in., With Interlock Switch, Orange
Seat Belt, 51 in., With Interlock Switch, Orange
$121.77

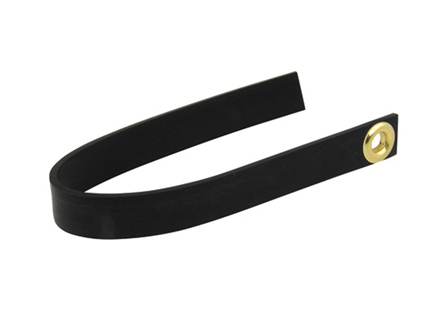

Grounding Strap, 10.5 in.
Grounding Strap, 10.5 in.
$21.15
Back-Up Alarm, Standard, 12 V - 48 V, 97 dB
Back-Up Alarm, Standard, 12 V - 48 V, 97 dB
$71.33
Switch, Key, ASM Molded
Switch, Key, ASM Molded
$51.07

SC 5700, 3-Wheel Sit-Down Counterbalance Forklift

Back to Top

Specifications

Maximum Lift Height Up to 276 in
Maximum Load Capacity Up to 4000 lb
Application Dock Work, Loading / Unloading, Manufacturing / Assembly (Just-in-Time), Putaway / Retrieval / Takedown, Restocking (Retail), Transport
Truck Type Counterbalance
Environment Indoor, Outdoor-Improved Surface
Power Type Electric
Max Load Capacity (lb) 4000
Lift Height Numeric 276
Series SC 5700
Platform Height N/A
Operating Position Rider Sit-Down
Fork Lengths 30 - 72 in
Empty Travel Speed 10 mph (48-V)
Mast Type Two Stage / Three Stage / Quad Mast
Empty Lift Lower Speed 110 fpm / 100 fpm
Overall Width 42.0 in

Product Description

Back to Top

No matter your industry or application, increasing demands for productivity and profitability require a whole new level of adaptability – and that’s where the Crown SC Series excels. The SC5700 Series offers the handling and stability of a larger forklift but allows for maneuverability in tight spaces. Whether loading and unloading trailers, performing dock & ramp work, transporting loads, and replenishing inventory, the SC Series three-wheel electric counterbalance forklift provides durability, maneuverability, and the precision to excel at multiple tasks in virtually any material handling application.

  • SC Series
  • Lift Capacity: 3000lb, 3500lb, & 4000lb Models
  • Lift Height: 114” - 276”
  • Collapsed Height: 54” – 100”
  • Lead-Acid or Lithium-Ion 36v System Options
  • 5° Forward Tilt
  • 48” Load Backrest
  • eGen Braking
  • Extended Steering Column with Infinite Adjustment
  • Lift Out or Side Battery Removal Access
  • EE Rating, Corrosion, and Freezer Packages Available
